Soft module series

产品概述产品参数

Soft module series

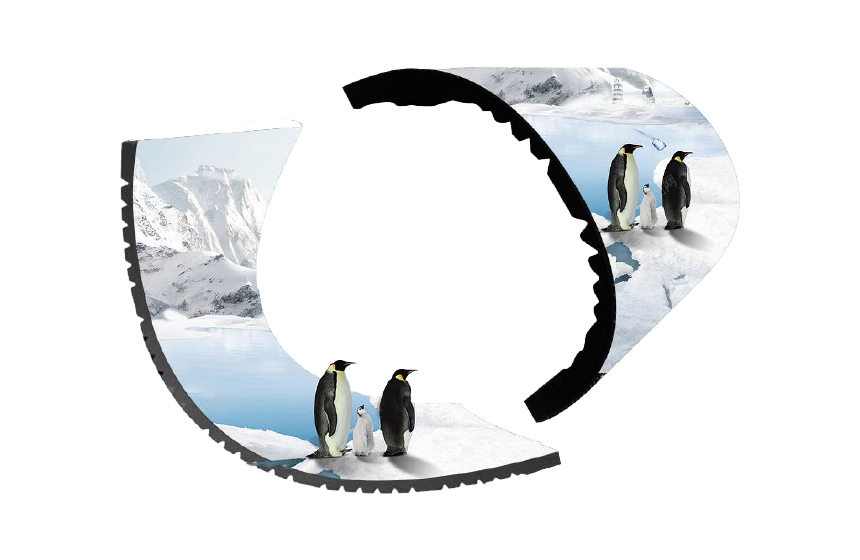

Concave and convex bending

A single box can achieve simultaneous concave and convex bending.

Extremely thin and otherworldly

A single box weighs 7kg and is only 94.5mm thick.
Arc function

Support any adjustment and splicing of internal and external arcs, the maximum Angle of the whole box is ±30°.
Cylindrical splicing

12 boxes can achieve cylindrical splicing, with a diameter of about 1.9 meters.
Wavy function

Angle support ± 30°, ± 25°, ± 20°, ± 15°, ± 10°, ±5°, 0°.

High definition
Super protection
Super light and thin
High Refresh
Convenient maintenance
170° ultra wide viewing Angle

Product parameter

Product model	Point spacing (mm)	Module Size (mm)	Refresh rate (Hz)
DLX1.25S	1.25	240x120	3840
DLX1.56S	1.56	240x120	3840
DLX1.667S	1.667	240x120	3840
DLX1.686S	1.86	320x160	3840
DLX1.875S	1.875	240x120	3840
DLX2.0S	2	240x120	3840
DLX2.0ES	2	320x160	3840
DLX2.5ES	2.5	320x160	1920
DLX2.5S	2.5	240x120	3840
DLX3S	3	240x120	1920
DLX4S	4	240x120	1920

产品型号

DLX-TBFN-16H2.5

DLX4FI

DLX2.5-5.0G

DLX4DI

色温K

2.5

3000-15000可调3

2.5-5

3000-15000可调
水平视角(°)

1602

1603

SMD1415/1515

160
垂直视角(°)

1402

1403

条宽20.5mm

140
发光点中心距偏差

<3%

<3%

1000x500x32

<3%
亮度均匀性

≥97%

≥97%

7.5

≥97%
对比度

5000:1

5000:1

IP 31

5000:1
换帧频率(Hz)

50/60

50/60

160

50/60
刷新率(Hz)

1920/3840(可选)

1920/3840(可选)

160

1920/3840(可选)
